Intelligent feeding & sorting system.

Standard intelligent card feeding machine, is developed according to packing industry requirement, which integrated key technology of Intelligent feeding. It is one size small, weight light intelligent feeding system. It is suit for feeding certificate of conformity, label, manual, paper etc. then to be used on kinds of packing production line. Compared with normal feeding machine, it has obvious product adaptability, installation convenience, high-speed response performance, very high feeding accuracy and fully open communication port, which is convenient for independent control or net-working, especially suit for manual replacement and realize unmanned workshop.

It is configured with double sheet detection and page link detection, material jammed detection, no material then alarm function. The control is HMI and PLC. The technical parameter setting is simple, easy on operation which is very popular by users. The applicability is good especially for folded product and organ folded product. Double detection with alarm & machine stop function, counting, to feed according to the set quantity & time, no material alarm and machine stop function, inner control or control from outside trigger function. It with all the listed functions.

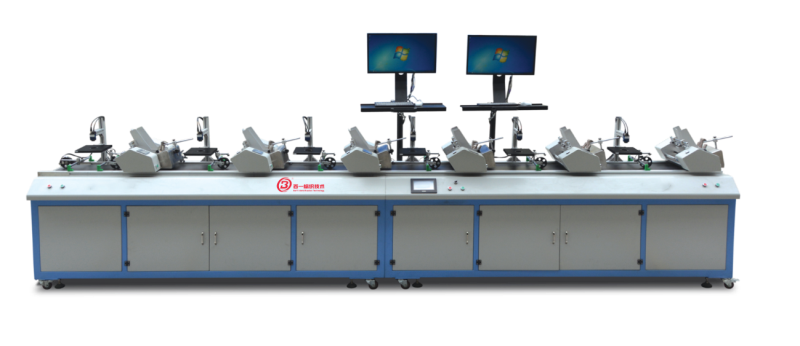

Standard intelligent feeding machine has two model at present. 1. It is directly feeding(model: BY-HFT250); 2, feeding with conveyor(model: BY-HTF250S). integrated several intelligent feeders to auto feeding & sorting system. Because of the integration difference, there are 3 models: 1. T type stepping sorting system (model: BY-MFJ3000-06); 2. – type stepping sorting system (model: BY-MFJ6000-07); 3. –type continuous sorting system (Model: BY-MFJ6000-06)

The difference between“Direct delivery feeder” and “ delivery feeder with conveyor”is with or without conveyor. Direct delivery is without conveyor, which is convenient for direct installation and product feeding but it can’t install other technology equipment such as identification equipment, collection equipment etc. while delivery feeder with conveyor has conveyor, it needs to pass a short conveyor then do the delivery, which is convenient for identification equipment and collection equipment’s installation. Several intelligent feeders can be integrated to auto feeding & sorting system. The three integration method can be selected according to the application requirement. Users can choose to adopt stainless steel as a outside shape or painted carbon steel. Color can be customized.
